ZJTEX ELECTRIC MOTOR

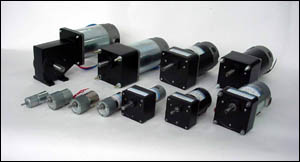

STANDARD DC GEAR MOTOR

ZJTEX developed a few standard DC gear motor for different high torque and quiet running application .Gearmotors different from following standard type please review our special gear motor contents or contact us directly.





Item No. TYPE VOLTAGE W Gearbox Size(mm)
1 25JA3K/310T-0556 5VDC 0.2 Diameter25
2 25JA3K/310T-0667 6VDC 0.4 Diameter25
3 25JA3K/2430-1255 12VDC 1.2 Diameter25
4 25JA3K/2430-0560 5VDC 2 Diameter25
5 25JA3K/2430-0672 6VDC 3 Diameter25
6 37JB6K Gearbox     Diameter37
7 37JB6K/EG530-0645 6VDC 0.45 Diameter37
8 37JB6K/3530-1230 12VDC 1.2 Diameter37
9 37JB6K/38DSW 12VDC 1.3 Diameter37
10 37JB6K/3530-1250 12VDC 1.8 Diameter37
11 37JB6K/3540-1230 12VDC 2.1 Diameter37
12 37JB6K/3530-2450 24VDC 2.1 Diameter37
13 37JB6K/3540-1250 12VDC 3.5 Diameter37
14 37JB6K/3540-2450 24VDC 4.2 Diameter37
15 60JB25K/3657-1250 12VDC   Square 60
16 60JB25K/5478-2420 24VDC 5.7 Square 60
17 60JB25K/5478-2430 24VDC 10.4 Square 60
18 60JB25K/5478-2443 24VDC 15 Square 60
19 7670JB50K/2730-1273 12VDC 4 Square 76X70
20 80JB80K/73110-2420 24VDC 35 Square 80
21 80JB80K/73110-2430 24VDC 59 Square 80
22 90JB100K/83125-2420 24VDC 42 Square 90
23 90JB100K/83125-2430 24VDC 77 Square 90

FZ 60/100series DC gear motor(New)

rated voltage 6V 9V 12V 24V DC
no-load speed 2500-6000r/min
no-load current <=250mA
rated torque 0.08-0.3N?cm
reduction ratio 1:300 1:708





Model


Operation Voltage
Range
Speed Range
Output Torque
Range
Rate Voltage


Rate Speed


Rated Torque


Gear
Ratio


V
rpm
oz-in
v
rpm
oz-in
1325B-1
6-24VDC
3-400
13-490
12VDC
3.5
283
1325.2






Model



Operation Voltage
Range


Speed Range


Output Torque
Range


Rate Voltage


Rate Speed


Rated Torque


Gear
Ratio


V
rpm
oz-in
v
rpm
oz-in
317C-1
6-24VDC
12-500
7-270
24VDC
19
208
317.45




Model
Operation Voltage
Range
Speed Range
Output Torque
Range
Rate Voltage
Rate Speed


Rated Torque




Gear
Ratio


V
rpm
oz-in
v
rpm
oz-in
081C-1
6-24VDC
15-500
12-420
24VDC
70
110
81.16

Other type

76SY001
65ZYT001




Model
Operation Voltage
Range


Speed Range



Output Torque
Range



Rated Voltage



Rated Speed


Rated Torque

Gear
Ratio
V
rpm
oz-in
v
rpm
oz-in
600C-1
6-24VDC
10-1500
3-270
24VDC
10
200
600

Model:42ZYJ986-3

Model

Voltage
(
V)

Speed scale

No-load Current
(
A)

Rated Current
(
A)

Rated Torque
(N.m)

No-load Speed
(
rpm)

Rated Speed
(
rpm)

      Remark

42ZY

12

-

0.05

0.18

0.013

10000

8000

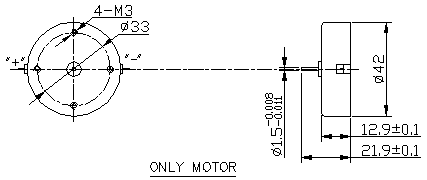

Only motor

42ZYJ986-3
12
986:1
0.09
0.18
0.8
9.5
8

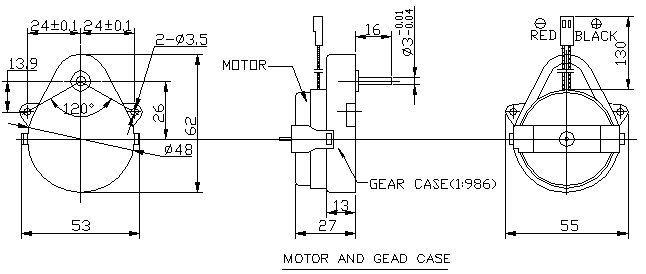

Motor and gearbox
